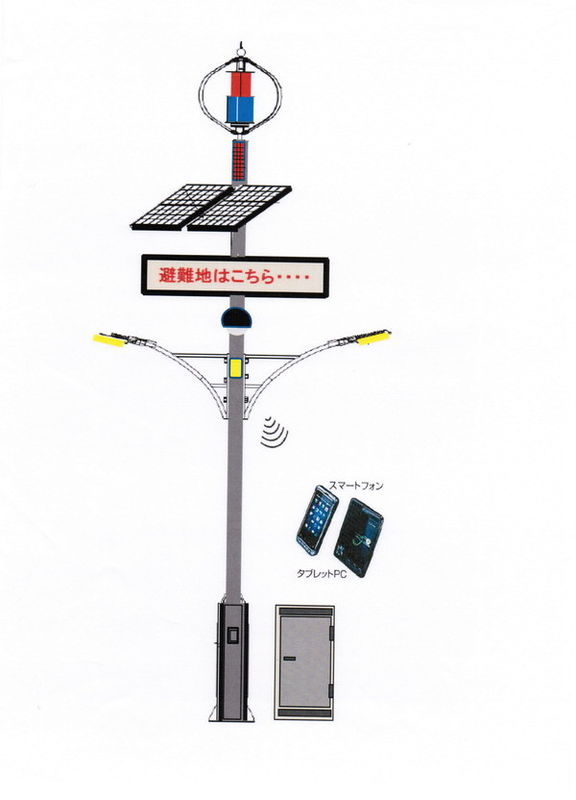

Red Maglev Wind Turbine with Low RPM For Wind Solar Hybrid Street LED Lamp

Red Maglev Wind Turbine with Low RPM For Wind Solar Hybrid Street LED Lamp

Red Maglev Wind Turbine with Low RPM  For Wind Solar Hybrid Street LED  Lamp

Product Details:

Place of Origin: Shenzhen, China
Brand Name: TYPMAR
Certification: CE IEC ISO9001
Model Number: CXF-300w

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Plywood
Delivery Time: 15 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets per month
Detailed Product Description
Blade Material: Alluminum Alloy Color: Red And Blue, Silver And Customerized Colar
Design: Darrieus And Sanvonius Generator: Three Phase AC Permanent Magnet Generator
Power Factor: 0.92 Cooling: Wind Cooling
Voltage Range Of Grid-side Converter: 180-260Vac One Phase Capacity: 300W-24V

Red Maglev Wind Turbine with Low RPM For Wind Solar Hybrid Street LED Lamp


1. Maglev Wind Turbine Brief :
  1. Name :CXF-200w , 300w Vertical Axis Maglev Wind Generator
  2. Applications : Off grid, grid-tie, residential and commercial, street lights, telecoms BTS and etc.
  3. Colour:Red & blue, Sliver and customrized colour


2. Features

  • Magnetic levitation technology
  • Independent of the direction of the wind
  • Startup at low wind speed of 1m/s
  • Higher efficiency compared to traditional HAWT
  • Works even in turbulence
  • Visually pleasing appearance
  • Turbine construction is resistant to gale 60m/s (132MPH)
  • Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
  • Design life: at least 20 years
  • Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db


3. Technical Specifications

Maglev Wind Turbine Items

CXF300

CXF600

CXF1000

CXF3000-

CXF3000-

Rated power

300W

600W

1000W

3000W

3000W

Dimension
(Height/Diameter)

Ø1080/1240

Ø1320/1540

Ø2200/2400

3530/Ø3600

Ø4160/4570

Weight

27

50 kg

180 kg

415KG

680 kg

Blade material

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Blade quantity

3

3

3

3

3

Swept area ㎡

0.76

1.27

3.6

7.02

7.72

Min starting wind speed

1m/s

1.3m/s

1.5 m/s

1.5m/s

1.5m/s

Cut-in wind speed

2.7 m/s

2 7m/s

3.5m/s

3.5m/s

3.5m/s

Rated wind speed

12m/s

12m/s

13m/s

13m/s

13m/s

Cut-off wind speed

15m/s

15m/s

15m/s

15m/s

15m/s

Survival wind speed

65m/s

65m/s

60m/s

60m/s

60m/s

Generator type

AC,3Phases

AC,3Phases

AC,3Phases

AC,3Phases

AC,3Phases

Controller Output Voltage

12V/24V

24V/48V

48V

48V

96V

Controller Braking System

3-phase short circuit by NFB brake

3-phase short circuit by NFB brake

3-phase short circuit by NFB brake

3-phase short circuit by NFB brake

3-phase short circuit by NFB brake

Ambient Temperature

-40~50 ℃

-40~50 ℃

-40~50 ℃

-40~50 ℃

-40~50 ℃

Noise

Noisy from National Machinery Quality Inspection Centre at 12m/s : <40db


4. Applications
Maglev Wind Turbine use for Off grid, grid-tie, residential and commercial, street lights, telecoms BTS and etc.
5. FAQ


a. Is Typmar a manufacturer or trading company?

We are a professional manufacturer, not a trading company. It’s TYPMAR who firstly invented maglev vertical axis wind turbine. We have USA patent (USD 647,477S ) and EU Patent (NO001721416-0001).

b. Is the maglev wind turbine expensive?

Yes, it is more expensive than HAWT because of solid and durable materials, but it has higher power effficiency and longer lifespan than HAWT. More importantly , 3KW passed IEC in 2014.

c. What is benefits of VAWT in comparison to a traditional horizontal axis wind generators.

  • Magnetic levitation technology
  • Independent of the direction of the wind
  • Higher efficiency than the propeller blades
  • Works even in turbulence
  • Visually pleasing appearance and rotation of the blades
  • Quiet or almost minimal acoustic noise
  • Movement of the blades even in low wind speed of 1m/sec
  • Turbine construction is resistant to gale 60m/s (132MPH)
  • Designed for mounting on mast, straight or saddle area
  • Design: aluminum alloy, stainless steel
  • Design life: at least 20 years
  •  Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
