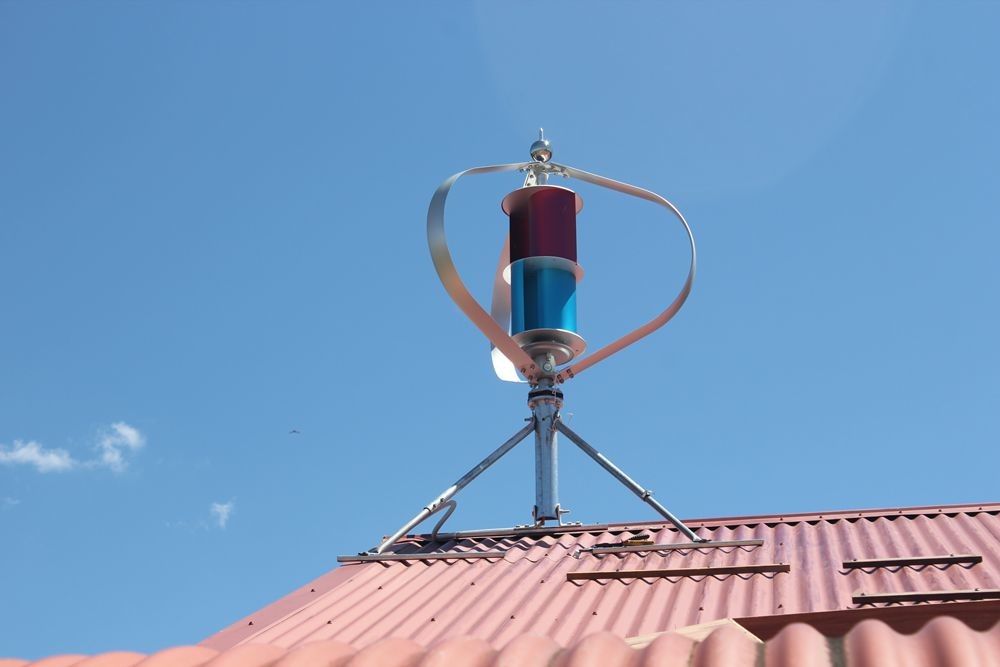

Vertical Axis Wind Turbine with original manufacturer TYPMAR CXF-30012V/24V
Quick Detail:
- Name :CXF-300 Maglev Vertical Axis Wind Turbine
- Application :street lighting system and Home Use
- Color:Red & blue, Sliver and customrized
- Magnetic levitation technology
- Independent of the direction of the wind
- Startup at low wind speed of 1m/s
- Higher efficiency compared to traditional HAWT
- Works even in turbulence
- Visually pleasing appearance
- Turbine construction is resistant to gale 60m/s (132MPH)
- Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
- Design life: at least 20 years
- Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
Description:
The CXF series of Maglev Vertical Axis Wind Turbine undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple specialities
Specification:
 MAGLEV WIND TURBINE TECHNICAL SPECIFICATION |
|
Model Number
|
CXF-300
|
CXF-400
|
CXF-600
|
CXF-1000
|
CXF-3000Ⅰ
|
CXF-3000Ⅱ
|
|
Rated Power
|
300W
|
400W
|
600W
|
1000W
|
3000W
|
3000W
|
|
Size
(Diameter/Height)
|
1240/1080MM |
1240/1120MM |
1700/1470MM |
2500/2300MM |
3500/3370MM |
4600/4200MM |
|
Turbine Weight
|
27KG |
29KG |
50KG |
180KG |
510KG |
790KG |
|
Blades Material
|
Aluminum Alloy |
|
Blades Number
|
3 |
|
Start-up
Wind Speed
|
1.3m/s |
1.3m/s |
1.3m/s |
1.5m/s |
2m/s |
3m/s |
|
Cut-in
Wind Speed
|
2.7m/s |
2.7m/s |
3m/s |
3.5m/s |
3.5m/s |
4m/s |
|
Rated Wind Speed
|
12m/s |
12m/s |
13m/s |
13m/s |
13m/s |
13m/s |
|
Cut Out
Wind Speed
|
15m/s |
|
Survival
Wind Speed
|
65m/s |
65m/s |
50m/s |
50m/s |
50m/s |
50m/s |
|
Generator Type
|
3 phase AC |
|
Controller
Output Voltage
|
12V or 24V |
12V or 24V |
24V or 48V |
48V |
48V |
96V |
|
Controller
Output Current
|
<20Amp |
<20Amp |
<30Amp |
<50Amp |
<130Amp |
<130Amp |
|
Controller
Brake System
|
Over speed automatic 3 phase short-circuit braking |
|
Ambient Temperature
|
. -40~50 ℃ |
