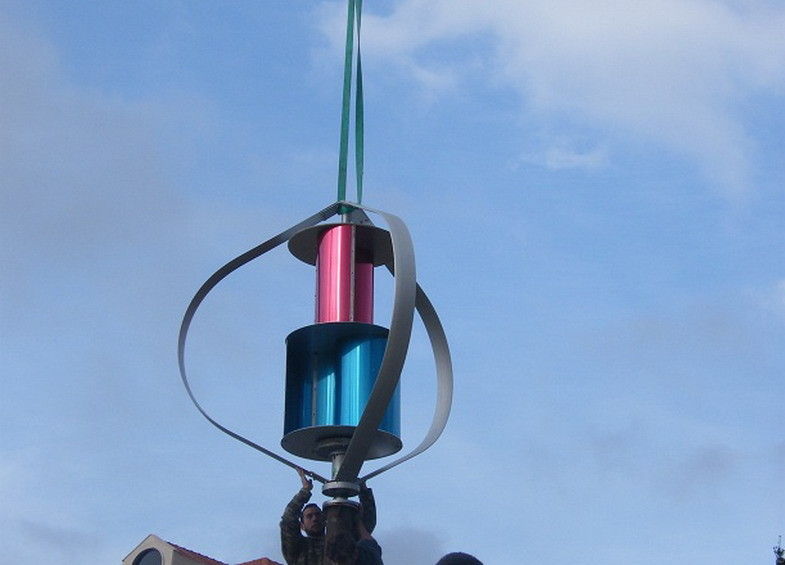

3000W 48V On Grid Wind Turbine for Home Use , Magnetic Levitation Generator

3000W 48V On Grid Wind Turbine for Home Use , Magnetic Levitation Generator

3000W 48V On Grid Wind Turbine for Home Use , Magnetic Levitation Generator

Product Details:

Place of Origin: China
Brand Name: TYPMAR
Certification: CE,TUV, IEC
Model Number: On-grid Wind Turbine 3KW 48V

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Plywood box
Delivery Time: 5-15 days
Payment Terms: Ex works
Supply Ability: 200PCS/week
Detailed Product Description
Product Name: On Grid Wind Turbine Color: White
Rated Output: 3KW Ingress Protection: IP65



3000W 48V On Grid Wind Turbine for Home Use , Magnetic Levitation Generator





Description:



On Grid Wind Turbine System at home that is currently connected to a locally provided power source is considered “on-grid.” In this scenario for sale  a power-conditioning unit (inverter) that makes the turbine output electrically compatible with the utility grid is installed. Your turbine works in tandem with your electric utility to power your house. When the wind isn’t blowing, the utility supplies your electricity. But when it’s windy out, your personal wind turbine pivots to catch the best wind and provides clean, quiet electricity. When it generates more electricity than you need, your meter can actually spin backwards—which means you’re selling electricity back to the utility.



An On Grid Wind Turbine system can be practical if the following conditions exist:
• You live in an area with an average annual wind speed of at least 10 mph (4.5m/s)
• Utility-supplied electricitys expensive in your area
• The utility’s requirements for connecting your system to its grid are not prohibitively expensive
• There are good incentives for the sale of excess electricity for the purchase of wind turbines



Wind power grid-tie system A is is a semi-autonomous electrical generation or grid energy storage system which links to the mains to feed excess capacity generated by wind turbine back to the local main electrical grid. When insufficient electricity is generated electricity drawn from the mains grid can make up the shortfall.



Residences and businesses that have a wind power grid-tie system permitted in many countries to sell their energy to the utility grid. Electricity delivered to the grid can be compensated in either net metering or feed-in-tariff, TYPMAR wind power grid-tie system offers complete system solutions for both compensation ways.

TYPMAR CXF series wind power grid-tie inverter is the core part of the whole system, the inverter is developed specially for TYPMAR series wind turbine according to CXF series wind turbine special features with an optimized power curve pre-written into inverter and smart over-voltage braking protection, which offers a reliable combination of high efficiency, easy-installation, high wind protection and grid-failure protection.





On Grid Wind Turbine Special Features



Integrated Controller – easy for installation

Integrated Isolation Transformer – extra safety protection

Wider Input Voltage Range – harvesting more power from breeze to gale

Programmable 20 Points of Power Curves – optimize power harvest from wind

Optional Remote Monitoring system – Monitoring remotely your installation

High Conversion Efficiency up to 95%

On-grid  Wind Turbine 3KW 48V Testing In WInd Tunnel





System Protections



High Wind Protection – software controlled braking system provides high wind protection with 3 minutes, 10 minutes and 30 minutes time-lapse braking modes. It's a consideration of system safety under the worst wind condition in natural environment.





Quick Detail:



  1. Name  On Grid Wind Turbine 3KW 48V Testing In WInd Tunnel
  2. Application : Residental Power Application
  3. Color: White



On-Grid Inverter Features:



● Over 97% Max. efficiency
● Ultra wide input voltage range
● Precise MPPT algorithm
● Compact and light design for one-person easy installation
● Wind/PV individual output
● Full loading output prior for wind output
● Programmable power curve for wind, PV MPPT algorithm, Max. efficiency
● High reliability for topology circuit, quality components and multi-protection
● RS485, WiFi, GPRS interface
● Convenient remote monitoring function
● Brake protection function

Specification Sheets →







Model

3K-H

Energy source

Wind channel                           +                            PV channel

Input side



Max. DC input voltage

600V

Start-up DC input voltage

40V                                                                      120V

MPPT operating range

30-540V                                                              100-500V

MPPT mode

Power curve tracking                                      Max power point tracking

Rated DC voltage

300V

Max. DC input current

10A

Number of MPP/Max. Strings per MPPT

1/1

Output side



Rated output power

3kW (PV and Wind in total)

Max. transient power

3.3kW

Rated AC grid voltage

230V

AC grid voltage range

180~270V (adjustable)

Operating phase

Single

Rated AC grid output current

13A

Max. AC output current

15.7A

Output power factor

>0.99

Grid current THD

Total THD<4%

DC injection current

<20mA

Rated grid frequency

50/60Hz

Efficiency



Max. Efficiency

>97%

Euro. Efficiency

>96.4%

MPPT Efficiency

>99.9%

Protection



DC reverse-polarity protection

Yes

DC switch for each MPPT

Yes

AC short circuit protection

Yes

AC output overcurrent protection

Yes

Output overvoltage protection-varistor

Yes

Ground fault monitoring

Yes

Grid monitoring

Yes

Islanding protection

Yes

Temperature protection

Yes

General data



Size

339W*565H*172.5D(mm)

Weight

14.5kg

Topology

Transformerless

Internal consumption

<6W(No wind)

Running temperature

-25℃~60℃

Ingress protection

IP65

Operating range utility frequency(HZ)

47-52 or 57-62 (adjustable)

Noise emission(typical)

<30 dBA

Cooling concept

Self convection

Max. operating altitude without derating

2000m

Design lifetime

>20 years

Utility monitoring

Islanding protection, VAC FAC in accordance with UL1741, G83/2, AS4777, VDE0126-1-1

Operating surrounding humidity

0~95%

EMC

EN61000-6-1:2007      EN61000-6-3:2007

Features



DC connection

Screw terminal

AC connection

Screw terminal

Display

LCD, 2×20 Z.

Interface

RS485/WiFi or GPRS (Optional)

Warranty

3 year
