Magnetic levitation Vertical Axis Maglev Wind Generator for Farm's Alternator

Magnetic levitation Vertical Axis Maglev Wind Generator for Farm's Alternator

Magnetic levitation Vertical Axis Maglev Wind Generator for Farm's Alternator

Product Details:

Place of Origin: Shenzhen, China
Brand Name: TYPMAR
Certification: CE IEC ISO9001
Model Number: CXF-600

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Plywood
Delivery Time: 15 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets per month
Detailed Product Description
Blade Material: Alluminum Alloy Color: Red And Blue As Well As Customerized Color
Product Name: Maglev Wind Generator Controller Output Voltage: 12V/24V

 Magnetic levitation Vertical Axis Maglev Wind Generator for Farm's Alternator

1. Maglev Wind Generator Feature:

  • Magnetic levitation technology
  • Independent of the direction of the wind
  • Startup at low wind speed of 1m/s
  • Higher efficiency compared to traditional HAWT
  • Works even in turbulence
  • Visually pleasing appearance
  • Turbine construction is resistant to gale 60m/s (132MPH)
  • Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
  • Design life: at least 20 years
  • Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db

2. Maglev Wind Generator Descriptions:

CXF Series of Vertical Axis Maglev Wind Generator is a breakthrough in wind power technology. It’s Typmar who made magnetic levitation technology used in wind turbine for the first time. This creates a milestone and fulfills important breakthrough in the history of small and medium wind turbine development. The maglev technology improves the efficiency of wind power 35% compared to traditional horizontal axis wind turbine. The innovative wind generators have been widely used for Telecoms Base Receiver Station (BTS) as well as residential and commercial applications.


3.Technical Specifications


Items

CXF300

CXF600

CXF1000

CXF3000-

CXF3000-

Rated power

300W

600W

1000W

3000W

3000W

Dimension
(Height/Diameter)

Ø1080/1240

Ø1320/1540

Ø2200/2400

3530/Ø3600

Ø4160/4570

Weight

27

50 kg

180 kg

415KG

680 kg

Blade material

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Blade quantity

3

3

3

3

3

Swept area ㎡

0.76

1.27

3.6

7.02

7.72

Min starting wind speed

1m/s

1.3m/s

1.5 m/s

1.5m/s

1.5m/s

Cut-in wind speed

2.7 m/s

2 7m/s

3.5m/s

3.5m/s

3.5m/s

Rated wind speed

12m/s

12m/s

13m/s

13m/s

13m/s

Cut-off wind speed

15m/s

15m/s

15m/s

15m/s

15m/s

Survival wind speed

65m/s

65m/s

60m/s

60m/s

60m/s

Generator type

AC,3Phases

AC,3Phases

AC,3Phases

AC,3Phases

AC,3Phases

Controller Output Voltage

12V/24V

24V/48V

48V

48V

96V

Controller Braking System

3-phase short circuit by NFB brake

3-phase short circuit by NFB brake

3-phase short circuit by NFB brake

3-phase short circuit by NFB brake

3-phase short circuit by NFB brake

Ambient Temperature

-40~50 ℃

-40~50 ℃

-40~50 ℃

-40~50 ℃

-40~50 ℃

Noise

Noisy from National Machinery Quality Inspection Centre at 12m/s : <40db























































4. Applications:

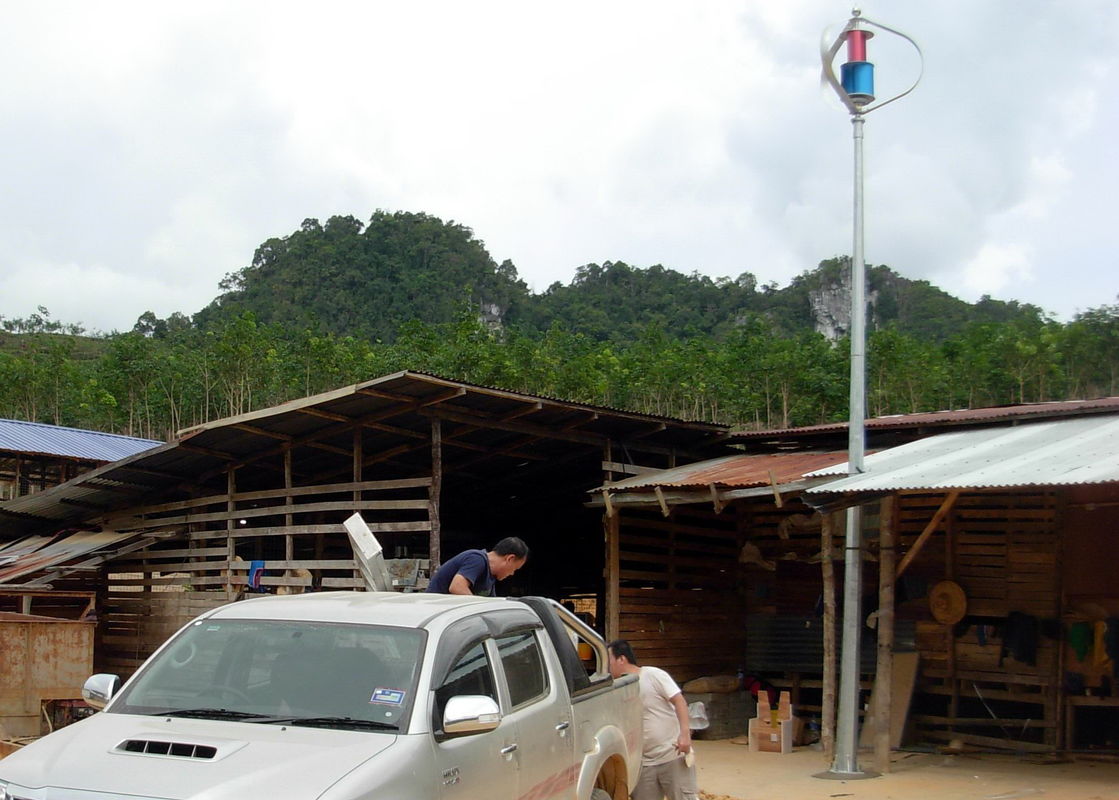

The CXF-600 maglev wind generator is a very ideal choice for power supply to farms in remote area.
