Vertical Axis Maglev Off Grid Wind Turbine Solar Light System , Easy Installation
Vertical Axis Maglev Wind Turbine is a breakthrough in wind power technology. It’s Typmar who made magnetic levitation technology used in wind turbine for the first time. This creates a milestone and fulfills important breakthrough in the history of small and medium wind turbine development. The maglev technology improves the efficiency of wind power 35% compared to traditional horizontal axis wind turbine.
That is why it has been widely used for Solar Light System Installed With Off-Grid Wind Turbine.
Technical Specifications
| Rated power |
Approx. 300Wh at 13 m/s (26 mph) |
| Swept Area |
0.8 m2 |
| Height / Diameter |
1.23/1.09 m |
| Weight |
27 kg |
| Shipping Dimensions |
1160 x 520 x 790 mm 56 kg |
| Startup Wind Speed |
1 m/s (2.6 mph) |
| Voltage |
12, and 24 V AC |
| Turbine Controller |
Smart Wind $ solar hybrid controller |
| Body |
Permanent mold cast aluminum |
| Blades |
(7) Injection-molded aluminum |
| Alternator |
Permanent maglev generator |
| Overspeed Protection |
3 phases short-circuit braking control |
| Survival Wind Speed |
65m/s |
| Mount |
Inner diameter 80MM 140mm outer diameter |
| Wind Speed Operating Range |
1-15 m/s (8-49 mph) |
| Optimum Wind Speed Range (RPM) |
8-10 m/s ( 750-800RPM) |
|
|
Environment:
• Zero emission
• Synergy with Solar and Geothermal systems
• Dual colors make it easy for bird identification in order to prevent collisions (Animal-friendly)
Installation:
• Easy Installation: System can be assembled within one hour
• No welding
• Single or multiple unit connection for bigger power production
• Easy connection with PV systems
Design:
• Gearless design: no need to replace worn-out or broken gear
• Brushless: motor brushes making high failure items results in regular replacements
• Bearing-free design: no need to lubricate or to replace worn-out bearings
• Magnetic levitation design: reduces rotational resistance to enhance power generation as well as prolong the turbine life.
• No yaw or furling mechanism required: allows for peak power output at any wind speed
• No cogging torque for cutting-in at low wind speed
• Direct-drive: Extends product life
• Blades can start rotating at very low wind velocity of 2.2 mph (1 m/s)
• Space-saving, aerodynamic airframe
• Heavy duty and industrial level construction

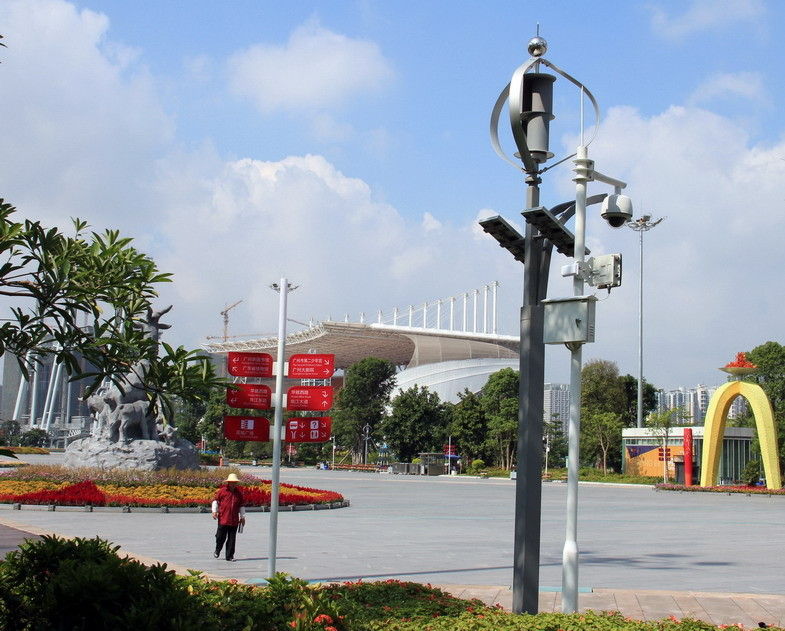

Solar Light System Installed With Off-Grid Wind Turbine
Control:
• Intelligent control system has automatic protective functions to lower rotational speed
in case of so strong wind as hurricane
• Real-time remote monitoring system can monitor and acquire data and equipment performance.
