Product Details:

Place of Origin: Shenzhen, China
Brand Name: TYPMAR
Certification: CE IEC ISO9001
Model Number: CXF-600

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Plywood
Delivery Time: 15 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets per month
Detailed Product Description
Blade Material: Alluminum Alloy Product Name: Maglev Wind Power Generator
Blade Quantity: 3 Generator Type: AC,3Phases



Home Small Maglev Wind Power Generator for Extensive , CXF300 CXF600

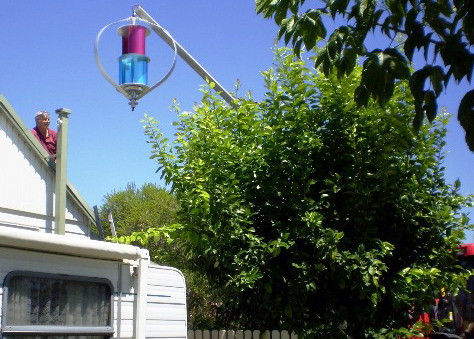

1. Product name:CXF Series of Vertical Axis Maglev Wind Turbine

CXF Series of Vertical Axis Maglev Wind Turbine is a breakthrough in wind power technology. It’s Typmar who made magnetic levitation technology used in wind turbine for the first time. This creates a milestone and fulfills important breakthrough in the history of small and medium wind turbine development. The maglev technology improves the efficiency of wind power 35% compared to traditional horizontal axis wind turbine. The innovative wind generators have been widely used for Telecoms Base Receiver Station (BTS) as well as residential and commercial applications.

2. Environment:
​• Zero emission
• Synergy with Solar and Geothermal systems
• Dual colors make it easy for bird identification in order to prevent collisions (Animal-friendly)

3. Installation:
• Easy Installation: System can be assembled within one hour
• No welding
• Single or multiple unit connection for bigger power production
• Easy connection with PV systems

4. Design:​
• Gearless design: no need to replace worn-out or broken gear
• Brushless: motor brushes making high failure items results in regular replacements
• Bearing-free design: no need to lubricate or to replace worn-out bearings
• Magnetic levitation design: reduces rotational resistance to enhance power generation as well as prolong the turbine life.
• No yaw or furling mechanism required: allows for peak power output at any wind speed
• No cogging torque for cutting-in at low wind speed
• Direct-drive: Extends product life
• Blades can start rotating at very low wind velocity of 2.2 mph (1 m/s)
• Space-saving, aerodynamic airframe
• Heavy duty and industrial level construction

5. Technical Specifications


Items

CXF300

CXF600

CXF1000

CXF3000-

CXF3000-

Rated power

300W

600W

1000W

3000W

3000W

Dimension
(Height/Diameter)

Ø1080/1240

Ø1320/1540

Ø2200/2400

3530/Ø3600

Ø4160/4570

Weight

27

50 kg

180 kg

415KG

680 kg

Blade material

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Blade quantity

3

3

3

3

3

Swept area ㎡

0.76

1.27

3.6

7.02

7.72

Min starting wind speed

1m/s

1.3m/s

1.5 m/s

1.5m/s

1.5m/s

Cut-in wind speed

2.7 m/s

2 7m/s

3.5m/s

3.5m/s

3.5m/s

Rated wind speed

12m/s

12m/s

13m/s

13m/s

13m/s

Cut-off wind speed

15m/s

15m/s

15m/s

15m/s

15m/s

Survival wind speed

65m/s

65m/s

60m/s

60m/s

60m/s

Generator type

AC,3Phases

AC,3Phases

AC,3Phases

AC,3Phases

AC,3Phases

Controller Output Voltage

12V/24V

24V/48V

48V

48V

96V

Controller Braking System

3-phase short circuit by NFB brake

3-phase short circuit by NFB brake

3-phase short circuit by NFB brake

3-phase short circuit by NFB brake

3-phase short circuit by NFB brake

Ambient Temperature

-40~50 ℃

-40~50 ℃

-40~50 ℃

-40~50 ℃

-40~50 ℃

Noise

Noisy from National Machinery Quality Inspection Centre at 12m/s : <40db
