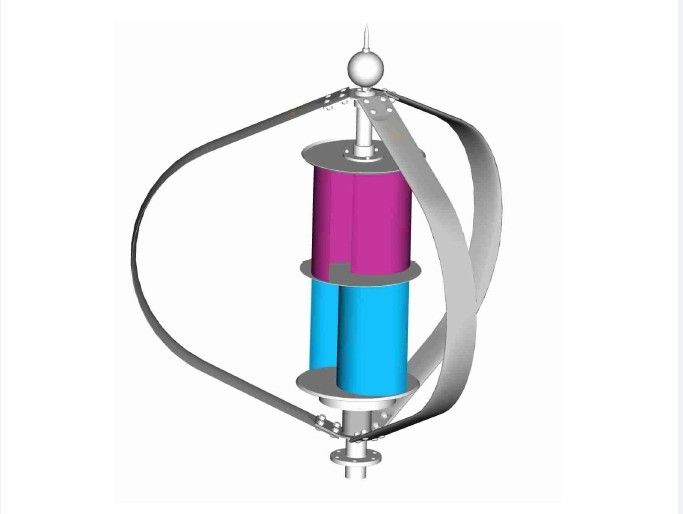

High Stability Maglev Wind Generator 600w for Home Use with own patent

High Stability Maglev Wind Generator 600w for Home Use with own patent

High Stability Maglev Wind Generator 600w for Home Use with own patent

Product Details:

Place of Origin: Shenzhen, China
Brand Name: TYPMAR
Certification: CE ISO9001 IEC
Model Number: CXF-600

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 5000 sets per month
Detailed Product Description



High Stability Maglev Wind Generator 600w for Home Use with own patent





1. Quick Detail:

  • Name :Maglev Wind Generator 600w for Home Use with own patent
  • Application :street lighting system and Home Use
  • Color:Red & blue, Sliver and customrized

2. Description:

The CXF series of vertical axis maglev wind turbines undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple specialities.



3. Applications:

Maglev Wind Generator 600w for Home Use with own patent is ideal for both of residential and commercial applications as well as off grid and on grid power systems. The unit provides a durable, reliable, and fully customized hybrid solution to Telecoms repeaters , Charging Station by Solar and wind and also very suitable for power supply to home.





4. Main Features:

  • Magnetic levitation technology
  • Independent of the direction of the wind
  • Startup at low wind speed of 1m/s
  • Higher efficiency compared to traditional HAWT
  • Works even in turbulence
  • Visually pleasing appearance
  • Turbine construction is resistant to gale 60m/s (132MPH)
  • Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
  • Design life: at least 20 years
  • Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
  • Maglev Wind Generator 600w for Home Use with own patent



5. Specifications



Items CXF600
Rated power 600W
Dimension (Height/Diameter) Ø1540mm / 1320mm
Weight 50 kg
Blade material Aluminum Alloy
Blade quantity 7 (3 Darrieusand 4 Savonius)
Swept area ㎡ 0.30
Min starting wind speed 1.3 m/s
Cut-in wind speed 3.5m/s
Rated wind speed 13m/s
Cut-off wind speed 15m/s
Survival wind speed 60m/s
Generator type AC,3Phases
Controller Output Voltage 24V/48V
Controller Braking System 3-phase short circuit by NFB brake
Ambient Temperature -40~50 ℃
Noise Less than 40dB
Annual Energy Production (@ 5 m/s wind speed ) about 1500 kWh
