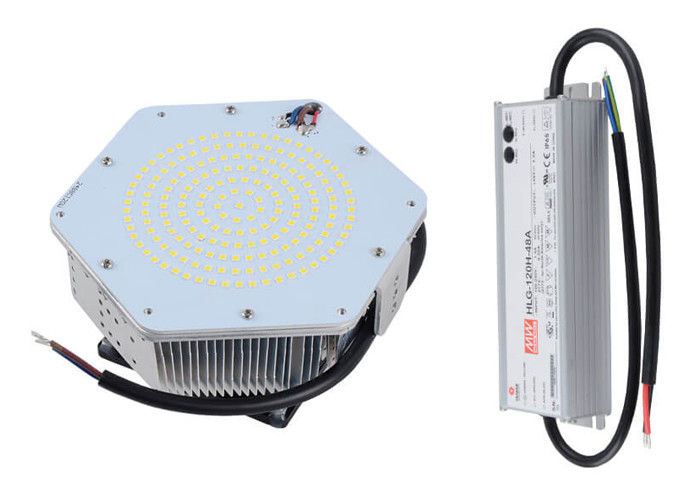

400 Watt HID Shoebox UFO LED High Bay Light DLC LED Replacement Lamp 3030 SMD

400 Watt HID Shoebox UFO LED High Bay Light DLC LED Replacement Lamp 3030 SMD

400 Watt HID Shoebox UFO LED High Bay Light DLC LED Replacement Lamp 3030 SMD

Product Details:

Place of Origin: CN
Brand Name: TYPMAR
Certification: ETL DLC TUV CE SAA ROHS FCC
Model Number: LSRK-120WXY

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: 75~80USD
Packaging Details: carton
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per week
Detailed Product Description
Driver: Mean Well LED: 3030 SMD
Replacement: 350-400W Metal Halide/HPS Lamp OEM Packing: Available Based On MOQ 100pcs
Lead Time: 500pcs Qty 10 Working Days Arm: Rotatable And Length Adjustable
Input Voltage: 100-277VAC,50/60Hz Dimming Options: Non-dimmable/dimmable
Body Temperature: <55℃ @Ta=25℃ Heat Sink: AL 1050 Aluminum Fin Heat Sink

400W HID Shoebox Light High Bay Light DLC LED Replacement Light 120W 150W


1. Feature

1. Using AL 1050 Aluminum fin heat sink,can be used in a sealed environment. And with thermostatthermal protector, to be sure for safe.
2. SMD3030 LED chips and MOSO or Mean Well power supply, quality first.
3. ISO quality standard factory & well trained workers, 5 years warranty.
4. 0-10V dimmable optional.

5. With the design of 360deg rotating and flexible design, perfect replacemnet for traditional shosebox lamp, high bay lamp,high mast lamp, cobra head street lamp, flood light, canopy lamp and wall pack lamp.

6. No UV and near-IR radiation in the light beam.






2. Our advantages


1.DLC &CE & RoHS & IP65 approved, 5 years Quality Guaranteed.
2.OEM & ODM available, more than 3 year OEM experience, independent R&D ability, and patent design.
4. Fast delivery time, 2-15 workdays depends on order quantity after payment confirmed.
5. Convenient transportation, close & easy access to both Shenzhen Seaport and Airport.
6. Flexible, small amount order accepted. Monthly supply capacity:3.000~10.000pcs/item.





3. Specifications



item NO. : LSRK-120WXY
1. Output Wattage:120W 10. E27/E26 : Dia145*230mm / 9.05'' (Shortest size)
E27/E26 : Dia145*300mm / 11.8'' (Longest size)
2. Luminous Flux:15,600Lm
3. Light Source: Philips SMD 3030
4. Base: E40/E39(mogul) E27/E26(Medium)
5. Input Voltage: 100-300VAC,50/60Hz 6. CRI > 80 PF>0.95
7. Beam Angle: 120 degree
8. Hexagon shape
9. Lifetime: 50,000+ hours
E40/E39 : Dia145*234mm / 9.84'' (Shortest size) E40/E39 : Dia145*288mm / 12.59'' (Longest size)
11. CCT : 3000K/4000K/5000/5700K/6000K
12. Meanwell Driver HLG-120H-48A
13. Body Temperature:<55 oC @Ta=25 oC
14. ETL cETL DLC CE RoHS certified
15. Arm rotatable and length adjustable
16. Replaces 350-400W Metal Halide/HPS
item NO. : LSRK-150WXY
1. Output Wattage:150W 10. E27/E26 : Dia145*230mm / 9.05'' (Shortest size) E27/E26 : Dia145*300mm / 11.8'' (Longest size)
2. Luminous Flux:20,000Lm
3. Light Source: Philips SMD 3030
4. Base: E40/E39(mogul) E27/E26(Medium)
5. Input Voltage: 100-300VAC,50/60Hz 6. CRI > 80 PF>0.95
7. Beam Angle: 120 degree
8. Hexagon shape
9. Lifetime: 50,000+ hours
E40/E39 : Dia145*234mm / 9.84'' (Shortest size) E40/E39 : Dia145*288mm / 12.59'' (Longest size)
11. CCT : 3000K/4000K/5000/5700K/6000K
12. Meanwell Driver HLG-150H-48A
13. Body Temperature:<55 oC @Ta=25 oC
14. ETL cETL TUV CE RoHS SAA FCC DLC Ctick certified
15. Arm rotatable and length adjustable
16. Replaces 450-500W Metal Halide/HPS



400 Watt HID Shoebox UFO LED High Bay Light DLC LED Replacement Lamp 3030 SMD

400 Watt HID Shoebox UFO LED High Bay Light DLC LED Replacement Lamp 3030 SMD

400 Watt HID Shoebox UFO LED High Bay Light DLC LED Replacement Lamp 3030 SMD



400 Watt HID Shoebox UFO LED High Bay Light DLC LED Replacement Lamp 3030 SMD



400 Watt HID Shoebox UFO LED High Bay Light DLC LED Replacement Lamp 3030 SMD





400 Watt HID Shoebox UFO LED High Bay Light DLC LED Replacement Lamp 3030 SMD





4. Optional Add ons



1. LED Driver fixed Kit



2. Low bay & Shoe box & Wall Pack & Canopy arm fixed kit



3.Lamp base adaptor







5. PACKAGE



item NO. : LSRK-120WXY Inner Box: 32cm*29cm*16cm
Lamp :0.8kg Driver:0.8kg QTY: 1pc
Outter Carton:63cm*61cm*33cm GW:14.8kg QTY: 8pcs
item NO. : LSRK-150WX  Inner Box: 32cm*29cm*16cm
Lamp :0.8kg Driver:0.8kg QTY: 1pc
Outter Carton:63cm*61cm*33cm GW:14.8kg QTY: 8pcs
















400 Watt HID Shoebox UFO LED High Bay Light DLC LED Replacement Lamp 3030 SMD
