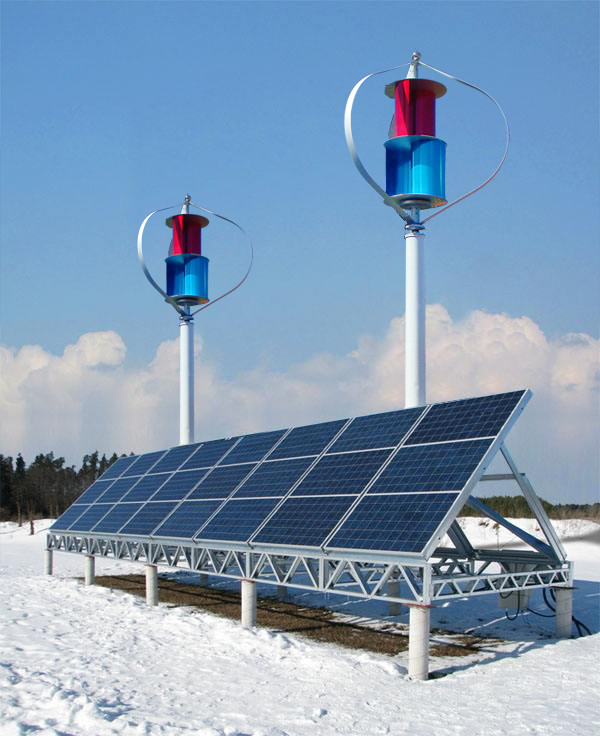

Off-grid wind solar hybrid system with 600W wind turbine with mono silicon solar PV for remote mountain area use
Product Details:
| Place of Origin: |
CHINA |
| Brand Name: |
TYPMAR |
| Certification: |
CE,ISO,IEC |
| Model Number: |
CXF-600 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1pcs |
| Packaging Details: |
plywood 1560*560*670mm(wind turbine) 1450*930*130mm (Blades) |
| Payment Terms: |
Western Union, MoneyGram |
| Supply Ability: |
3000pcs/month |
Detailed Product Description
| Rated Power: |
600W |
Size (H/D): |
1500/1700MM |
| Turbine Weight: |
50KG |
Blades Material: |
Aluminum Alloy |
| Blades Qty.: |
3 |
Start-up Wind Speed: |
1.5m/s |
| Cut-in Wind Sped: |
4m/s |
Rated Wind Speed: |
13m/s |
| Cut Out Wind Speed: |
15m/s |
Survial Wind Speed: |
45m/s |
| Ambient Temperature: |
-45~50℃ |
Off-grid wind solar hybrid system with 600W wind turbine with mono silicon solar PV for remote mountain area use
Quick Detail:
- Name :CXF-600 Maglev Vertical Axis Wind Turbine
- Application :street lighting system and Home Use
- Color:Red & blue, Sliver and customrized
- Magnetic levitation technology
- Independent of the direction of the wind
- Startup at low wind speed of 1m/s
- Higher efficiency compared to traditional HAWT
- Works even in turbulence
- Visually pleasing appearance
- Turbine construction is resistant to gale 60m/s (132MPH)
- Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
- Design life: at least 20 years
- Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
Specification:
 MAGLEV WIND TURBINE TECHNICAL SPECIFICATION |
|
Model Number
|
CXF-300
|
CXF-400
|
CXF-600
|
CXF-1000
|
CXF-3000Ⅰ
|
CXF-3000Ⅱ
|
|
Rated Power
|
300W
|
400W
|
600W
|
1000W
|
3000W
|
3000W
|
|
Size
(Diameter/Height)
|
1240/1080MM |
1240/1120MM |
1700/1470MM |
2500/2300MM |
3500/3370MM |
4600/4200MM |
|
Turbine Weight
|
27KG |
29KG |
50KG |
180KG |
510KG |
790KG |
|
Blades Material
|
Aluminum Alloy |
|
Blades Number
|
3 |
|
Start-up
Wind Speed
|
1.3m/s |
1.3m/s |
1.3m/s |
1.5m/s |
2m/s |
3m/s |
|
Cut-in
Wind Speed
|
2.7m/s |
2.7m/s |
3m/s |
3.5m/s |
3.5m/s |
4m/s |
|
Rated Wind Speed
|
12m/s |
12m/s |
13m/s |
13m/s |
13m/s |
13m/s |
|
Cut Out
Wind Speed
|
15m/s |
|
Survival
Wind Speed
|
65m/s |
65m/s |
50m/s |
50m/s |
50m/s |
50m/s |
|
Generator Type
|
3 phase AC |
|
Controller
Output Voltage
|
12V or 24V |
12V or 24V |
24V or 48V |
48V |
48V |
96V |
|
Controller
Output Current
|
<20Amp |
<20Amp |
<30Amp |
<50Amp |
<130Amp |
<130Amp |
|
Controller
Brake System
|
Over speed automatic 3 phase short-circuit braking |
|
Ambient Temperature
|
. -40~50 ℃ |
Description:
The CXF series of Maglev Vertical Axis Wind Turbine undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple specialities
Applications:
The 600w-24V/48V Maglev Vertical Axis Wind Turbine is ideal for both of residential and commercial applications as well as off grid and on grid power systems. The unit provides a durable, reliable, and fully customized hybrid solution to Telecoms Base Receiver Station (BTS), Charging Station by Solar and wind and also very suitable for power supply to home
