300W12V/24V maglev wind turbine with low wind speed rotation without noisy and vibration

300W12V/24V maglev wind turbine with low wind speed rotation without noisy and vibration

300W12V/24V maglev wind turbine with low wind speed rotation without noisy and vibration

Product Details:

Place of Origin: CHINA
Brand Name: TYPMAR
Certification: CE,ISO,PATENT,IEC
Model Number: CXF-300

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: plywood
Delivery Time: 3 working days after received full payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 5000 Sets/Month
Detailed Product Description
Rated Power: 300W Turbine Weight: 27KG
Start-up Wind Speed: 1m/s Cut-in Wind Speed: 2.7m/s
Rated Wind Speed: 12m/s Survival Wind Speed: 65m/s
Controller Output Voltage: 12V/24V Controller Output Current: <20Amp
Noise Level: Lower Than 40db Ambient Temperature: -40~50 Celsius

300W12V/24V maglev wind turbine with low wind speed rotation without noisy and vibration



Quick Detail

1. Direct drive, no mechanic friction
2. Savonius Turbine and Darrieus Turbine are combined, perfect work in breeze and strong wind
3. Start up at 1.0 m/s, cut in wind speed 2.5 m/s
4. Lightning rod built in wind turbine body
5. Beautiful for the LED street lighting system and the city
6. No pollution, no carbon



Description

TYPMAR maglev wind turbine have 6 models, , 300W, 400W,500W and 600W, 1KW, 3KW are for hybrid street lighting, home use, telecom station or any place need independent power.

Our 300W Maglev wind turbine mainly designed for hybrid street lighting use, the wind turbine is easy starting up, light weight and small in size. While the hybrid street lighting system installed, you can find it’s a beautiful view for the urban city as well as the following benefits.



Design:
• Gearless design: no need to replace worn-out or broken gear
• Brushless: motor brushes making high failure items results in regular replacements
• Bearing-free design: no need to lubricate or to replace worn-out bearings
• Magnetic levitation design: reduces rotational resistance to enhance power generation as well as prolong the turbine life.
• No yaw or furling mechanism required: allows for peak power output at any wind speed
• No cogging torque for cutting-in at low wind speed
• Direct-drive: Extends product life
• Blades can start rotating at very low wind velocity of 2.2 mph (1 m/s)
• Space-saving, aerodynamic airframe
• Heavy duty and industrial level construction
  Wind Solar Hybrid Street Light System With Doulbe LED Lamps



Environment:
​• Zero emission
• Synergy with Solar and Geothermal systems
• Dual colors make it easy for bird identification in order to prevent collisions (Animal-friendly)

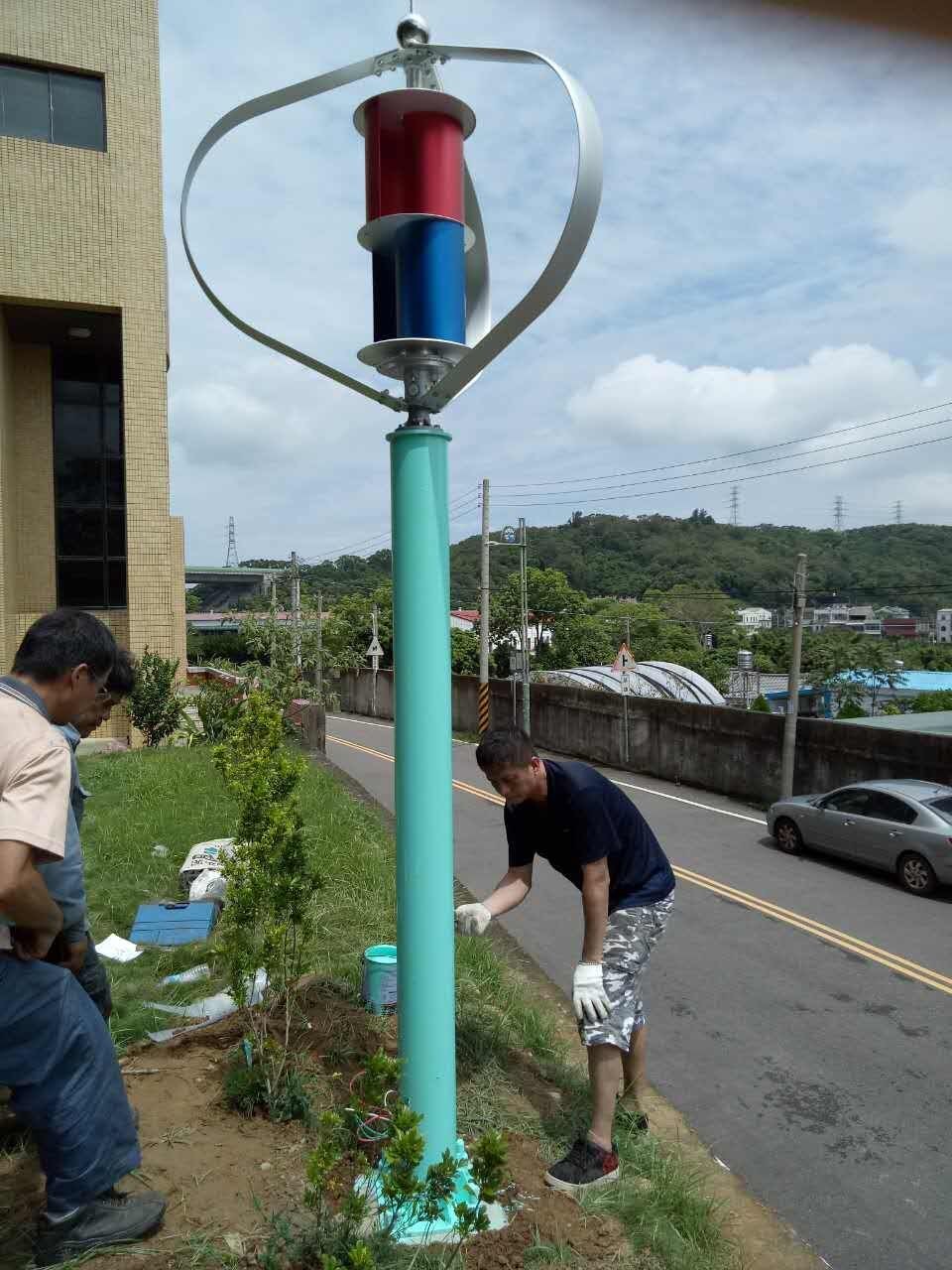

Installation:
• Easy Installation: System can be assembled within one hour
• No welding
• Single or multiple unit connection for bigger power production
• Easy connection with PV systems





Control:
• Intelligent control system has automatic protective functions to lower rotational speed in case of so strong wind as hurricane
• Real-time remote monitoring system can monitor and acquire data and equipment performance

Technical Specification

TYPE NO CXF-300
Rated Power 300W
MAX Power 350W
Rated Speed 13 m/s
Cut-Out Speed 15 m/s
Survival Speed 65 m/s
Star-up Speed 1.3 m/ s
Cut-out Speed 2.7 m/s
Maximum RPM 700 RPM
Body/Blade Aluminum Alloy/Galvsteel(SS400)
Qty of Blades 3
Rotor Diameter Φ1115mm
Height of turbine 1080mm
Generator AC 3 phase Synchronism PMG
Rated output Voltage DC24
Turbine Warranty two years
Ambient Temperature Range-30 ~ 50℃
Ambient Humidity 95% Max
Turbine Weight 27 KG
Package Size 1160*450*420mm

Why to choose TYPMAR wind turbine ?

The CXF series of maglev wind turbines undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple subjects to have the following features:

  • Magnetic levitation technology
  • Independent of the direction of the wind
  • Startup at low wind speed of 1m/s
  • Higher efficiency compared to traditional HAWT
  • Works even in turbulence
  • Visually pleasing appearance
  • Turbine construction is resistant to gale 60m/s (132MPH)
  • Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
  • Design life: at least 20 years
  • Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
HAWT AND MVAWT
Item Horizontal axis (HAWT) Vertical axis (EML)
Start wind speed High(≥3m/s) Low(1m/s)
Wind conditions required Require stable wind direction Any wind direction
Encountered turbulence Reduce the efficiency Efficiency is not affected
Power stability Change by wind direction Without any wind effect
Noise Large(45 decibels or more) Low noisy (because there is no mechanical friction)
Product appearance Normal Beautiful
Installation height High(need to avoid the terrain turbulence) Low(not afraid of turbulence)
Installation location Just in open area like suburb Any location
Generator material Plastic or composite metal
Structure strength Poor (easy to broken) High(double strengthen arm)
Resistance of wind speed Poor(about 40 m/s) High(about 60m/s)
